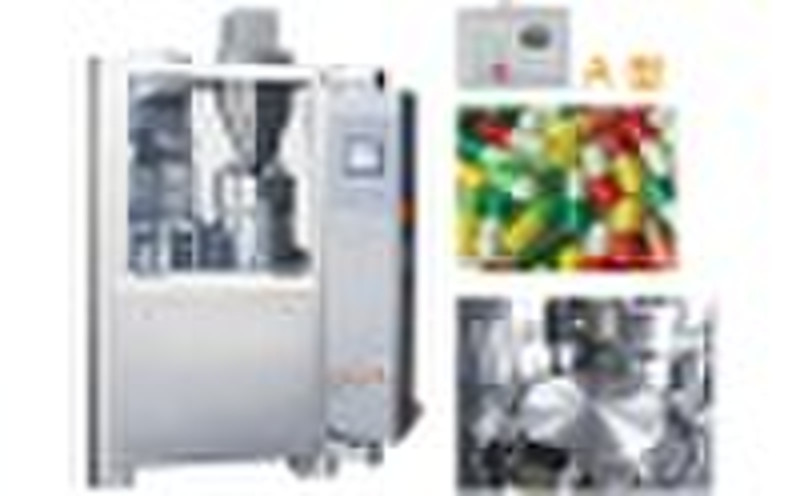

NJP-3500/2000A/C AutomaticCapsule Filling Machine

NJP-3500/2000A/CAutomatic Capsule Filling Machine Performance and characteristic: 1.Small volume,low consumption of energy,simplification in changing modules.Easy operating and cleaning. 2.Adopt Fugexan eliminating Ma's trough roller to transmit,less vibration,its noise is lower than 75dB while running at top speed.Dose difference is controlled within ±3%. 3.The rate of capsule flling is>99%. 4.The turning-around parts are in full closure,having excellent lubricating cond-itions.Without old spot on the working bench,avoiding the cross pollution with medicines.Around the dosedish are fixed with shelter,which can reduse the medicine powder cast from under the dish through another pipe. 5.Meanwhile,it can reduce the dust on the surface of the bench. 6.Adopt the SIE MENS man-machine interface(including PLC programming controller,crystal screen displaying the out pulteach minute,accumulative output,dynamic empty capsules and medicine powder state,alarming for lacking of capsules and insuffi-cient medicine powder stop,trouble shooting display and soon)It has communication fhermal Main technical data: ITEM35002000MODELOutput(pcs./min)35002000No. of segment bores2518Appropriate for Capsule00#-4#00#-4#Total Power10.5KW8KWOverall Weight3000Kg2000KgOverall Dimension(mm)11700×1560×20001000×1300×1900
